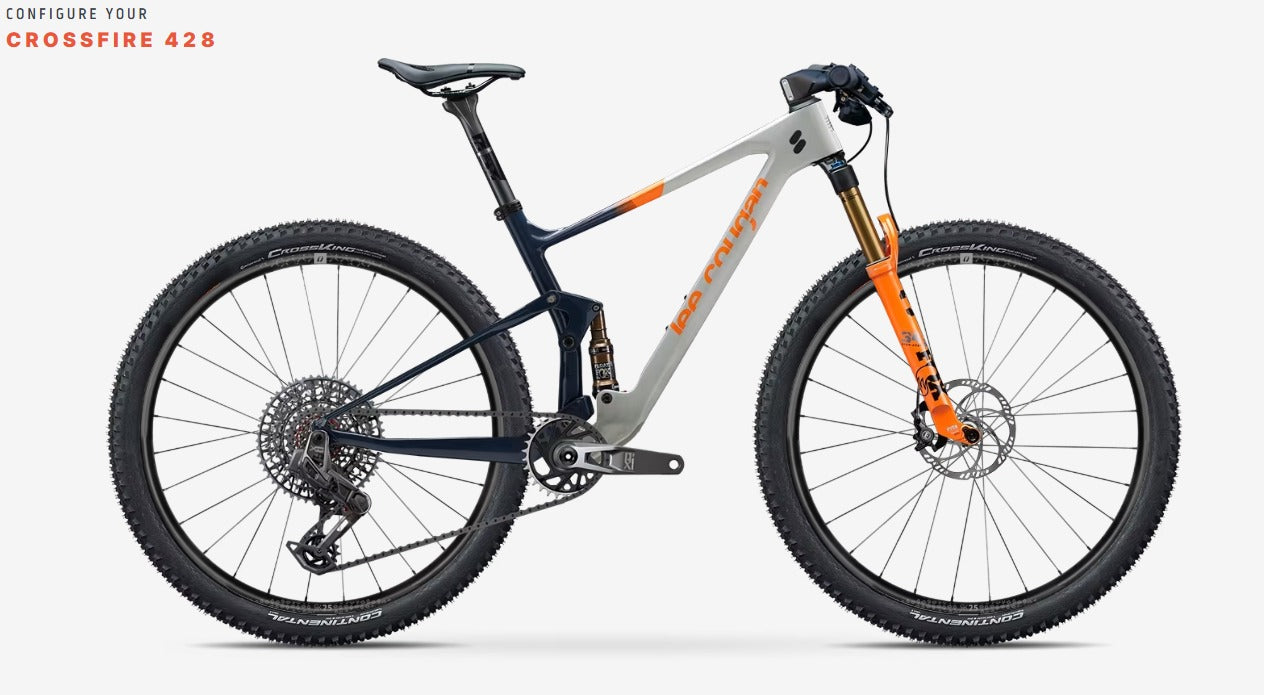

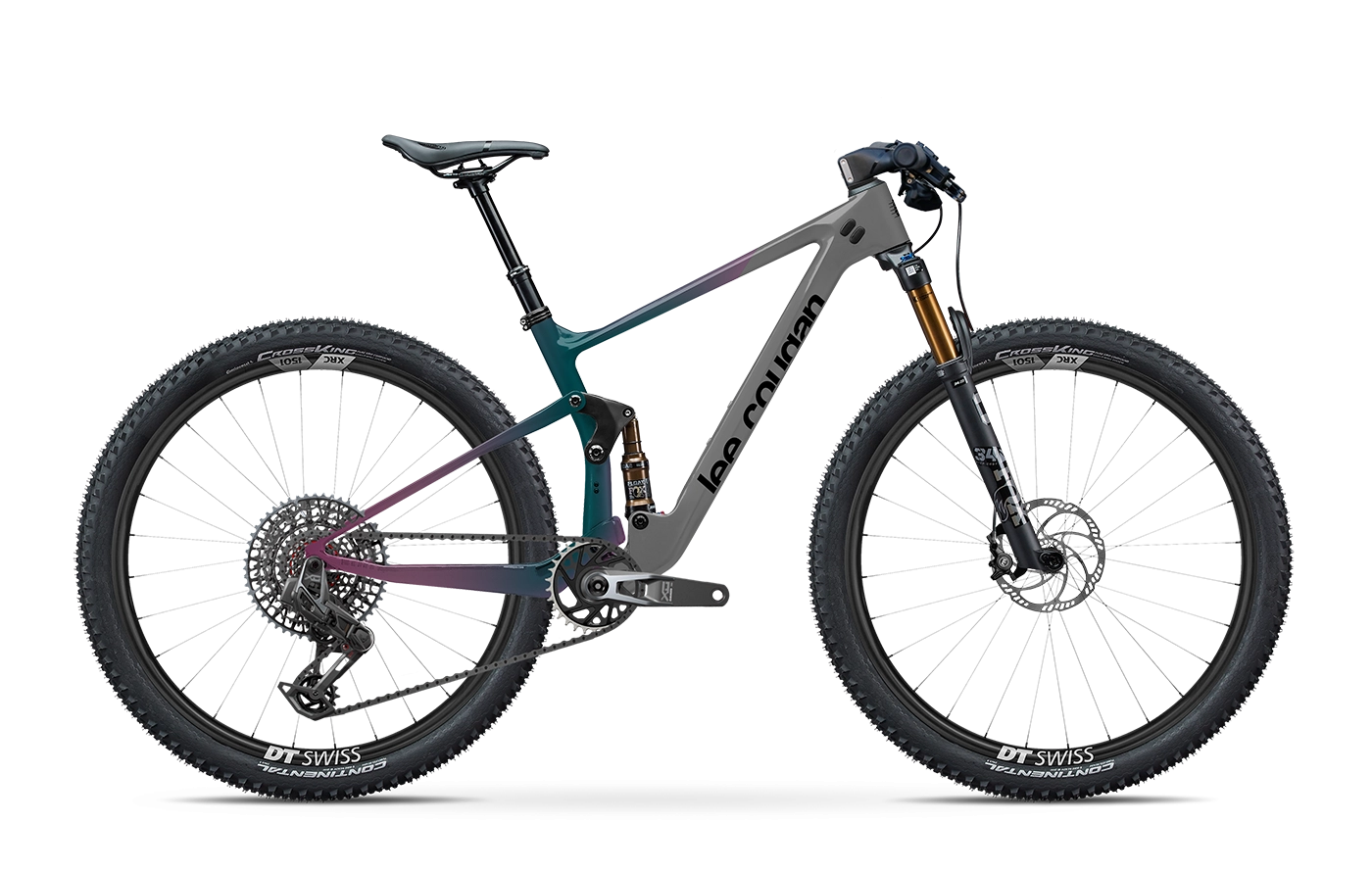

LEE COUGAN BIKES MTB CROSSFIRE 428

Name: LEE COUGAN BIKES MTB CROSSFIRE 428
Brand: revoltcyclery
Price: 8895.0 USD
Availability: OutOfStock

LEE COUGAN BIKES MTB CROSSFIRE 428

SKU:

Innovative solution

It was difficult to improve our Crossfire 428, but we put all our know-how and our forward-looking vision into the field to succeed.
The design, the simplicity and the efficiency of the Crossfire 428 are the characteristics that have made it popular and much talked about in the race fields, but we still wanted to give topics for discussion to the best riders.

Shorter is better

Crossfire model adopts the shortest chainstays available on the market.
Measuring an amazingly short 428mm the Crossfire, with 100mm travel, is able to locate the rear wheel closer to the bottom bracket than nearly anything else in cross country mountain biking currently in terms of a full suspension ride. The resulting performance gain is impressive and renders the bike extremely competitive in even the most demanding scenarios.

Flat mount brakes

Crossfire 428 adopts the Flat mount brake on the rear. The even more streamlined line, the more protected caliper and the clean braking are among the benefits of this innovative solution that we wanted to make available to riders who choose to ride without compromise.

Solid rear triangle

To eliminate the negative side effect that derives from “bobbing” the new 2nd Gen 3D link as well as the form and construction of the rear triangle have been designed specifically to reduce to a minumum the movement of the top link and therefore less flex of the seat stay. The result: more efficient, comfortable race-ready suspension performance.

Opened HT angle

The front triangle was developed in order to offer more stability. For pure cross country courses are becoming increasingly extreme and a more open head tube angle aids in overcoming difficult terrain.

XC marathon riders too will welcome the plush yet stable and safe front end with a 68.5° head tube (for 100mm travel fork) by rendering the terrain more manageable after hours in the saddle. To keep both frame and cables safe the internal block system prevents instances of oversteering from causing damage.

Carbon Air Technology

Crossfire model takes advantage of Lee Cougan’s Air Technology, a carbon molding technique that uses extremely high pressure in the modling phase to eliminate imperfections casued by trapped air in addition to blending the 1k, 3k and unidirectional carbon fiber in a manner that makes for a more compact overall structure.

The result: stronger, more reliable carbon frames that weigh less than comparable frames that use more traditional construction methods.

Lee Cougan True Internal Cable Routing

The Crossfire’s rear triangle design benefits from Lee Cougan’s True Internal Cable Routing system that see cables pass from BB directly into chainstay, leaving them exposed for only 1cm. Not only for a cleaner aesthetic the routing design aids in protection from external elements as well.

Internal cable routing finds its way into not only the frame but also the cockpit as the Crossfire cements itself firmly among the first in the mtb world to route transmission and brake cables within the stem and steer tube.

Geometry

Every good bike fit starts with choosing the correct frame size for you. This will allow you to benefit best of the bike’s performance and comfort for an efficient riding position.

	S	M	L
Seat tube (ST)	420 mm	460 mm	495 mm
Top tube (TT)	585 mm	605 mm	625 mm
Head tube (HT)	95 mm	105 mm	115 mm
Chain stay (CS)	428	428	428
Head tube angle (HA)	68.5°	68.5°	68.5°
Seat tube angle (SA)	74°	74°	74°
Wheel base (WB)	1105 mm	1126 mm	1147 mm
Reach (R)	417 mm	434 mm	451 mm
Stack (S)	588 mm	597 mm	606 mm
BB height (BH)	330 mm	330 mm	330 mm
Stem	80 mm	90 mm	100 mm
Standover	759 mm	778 mm	808 mm
