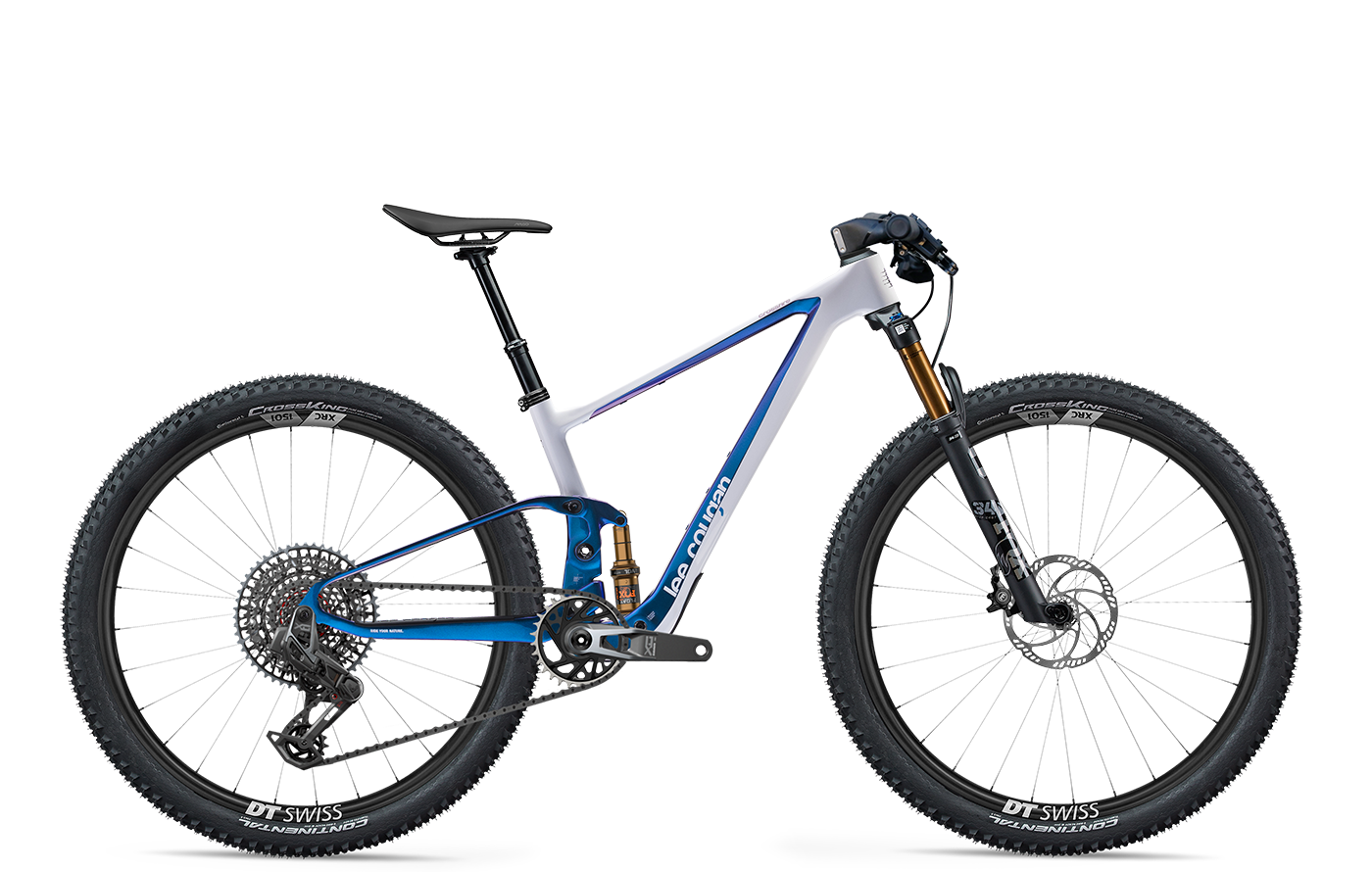

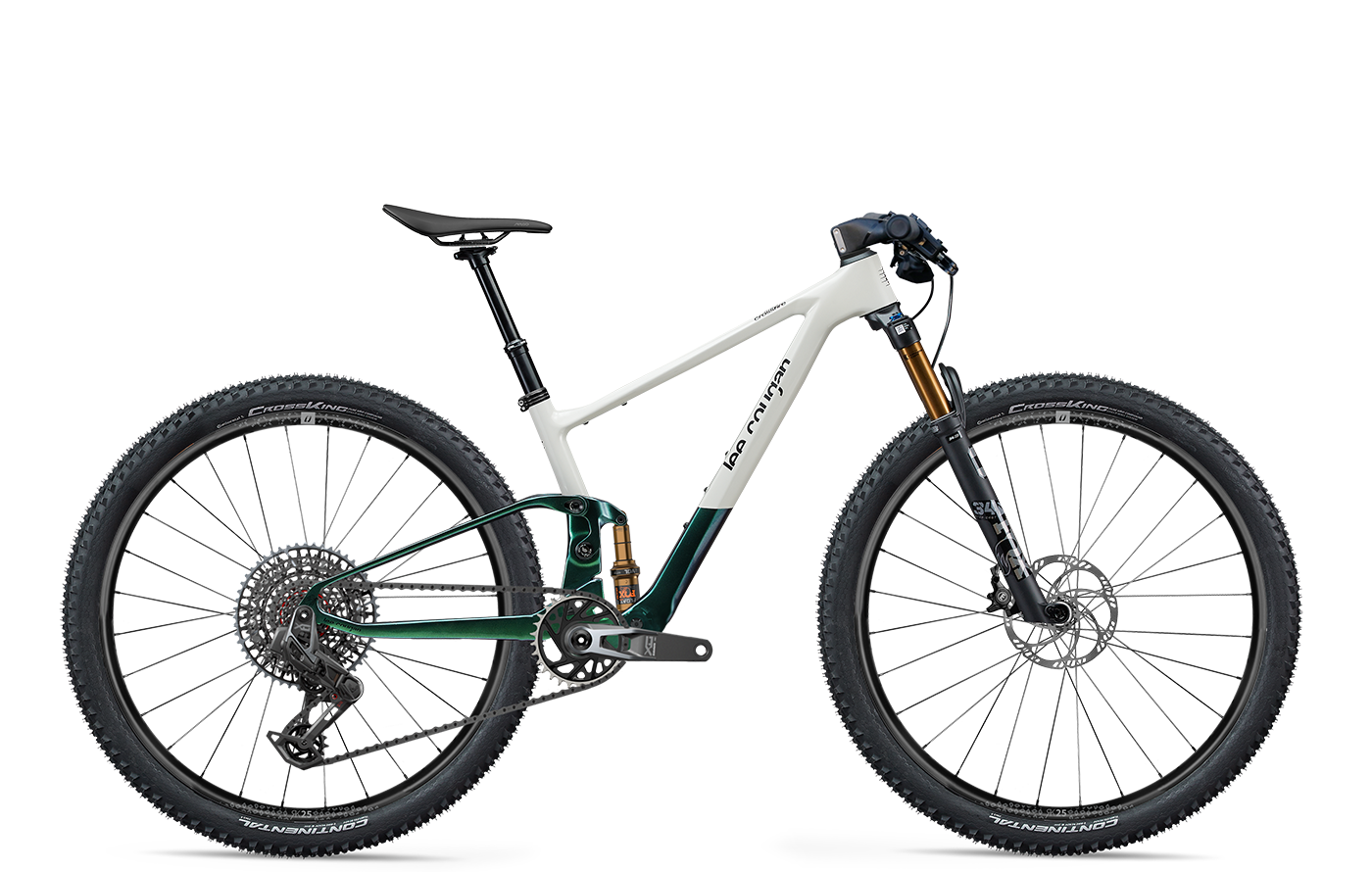

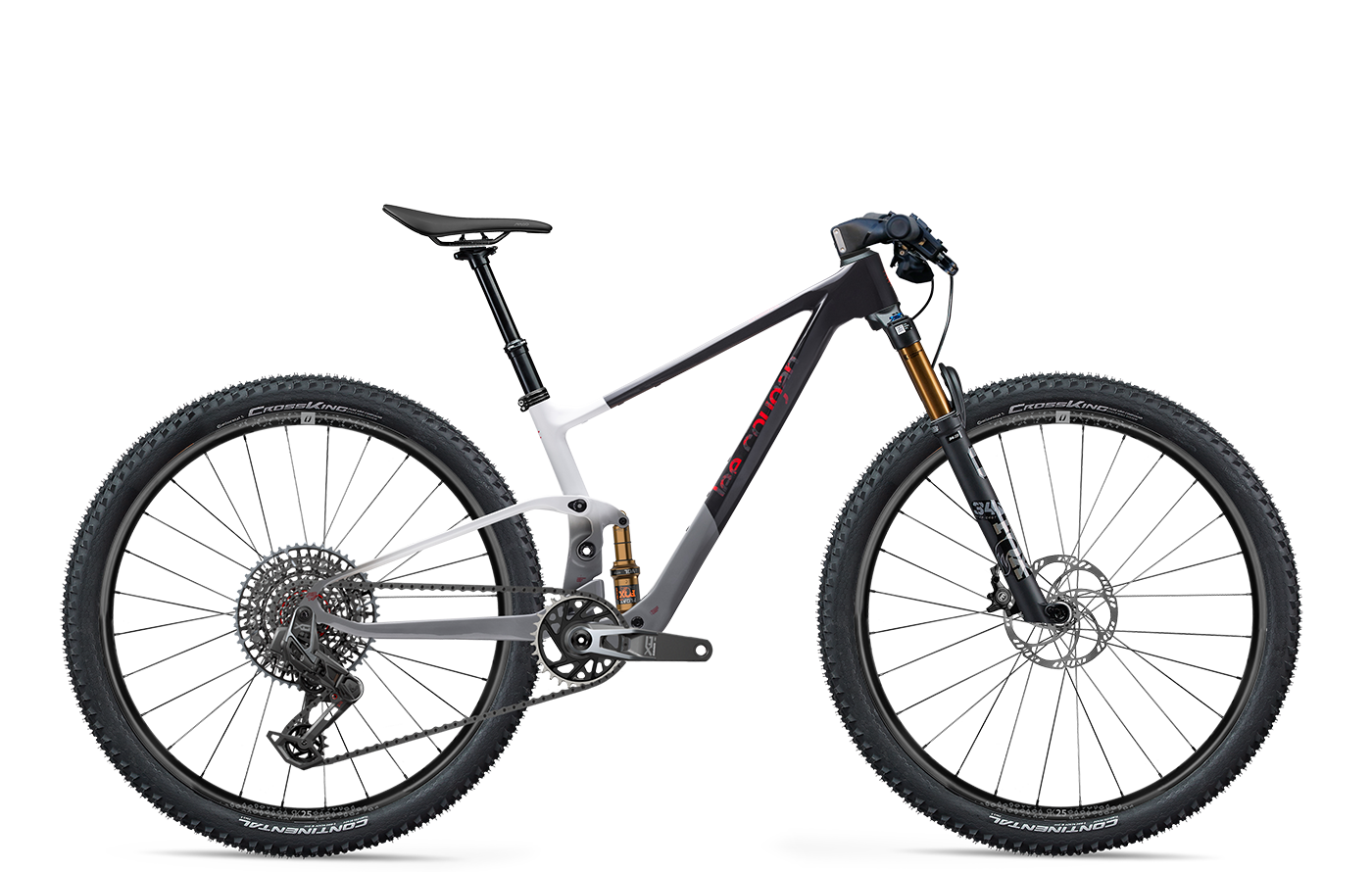

LEE COUGAN BIKES MTB CROSSFIRE TRAIL

Name: LEE COUGAN BIKES MTB CROSSFIRE TRAIL
Brand: revoltcyclery
Price: 12295.0 USD
Availability: OutOfStock

LEE COUGAN BIKES MTB CROSSFIRE TRAIL

SKU:

WHAT ARE YOU RIDING FOR?

Whether you want to conquer the competitive world of Cross Country, or enjoy the exhilarating trails that beckon during leisure rides.

Every detail of my nature is shaped to ride yours.

FOR THE PODIUM?

Yesss, I’m ready. The Lee Cougan family crafted me with precision and engineered for peak performance.

FOR THE WEEKEND THRILL?

I can already feel it flowing inside my air carbon technology with Torayca T1000 and T800 fibers. Let’s ride it.

FOR LONG ADVENTURE RIDES?

Pure joy. The rear shock and frame work like a cohesive unit to deliver pedal efficiency and suspension.

So, you optimize your energy.

DON’T KNOW YET?

It’s ok, rider. Push me into the unknown and let’s have fun together.

Embark on a journey to discover your nature until it becomes the ultimate guide.

Travel

120 mm

With Structural Crossbar System.

Weight

1850g

Frame and shock in size M.

Geometry

67.5° - 75.5°

Head tube and seat tube angle with long frame reach.

My Structural Crossbar System

So good to see you still here. As your next cycling partner, I still have things to tell you about myself. Like my Structural Crossbar System (S.C.S).

I have the rear shock placed strategically in a vertical orientation. It facilitates a low center of gravity and serves as an integral structural component of the frame.

And let me tell you. I have torsional stiffness at the highest standards in the market because of the shock head I use as a crossbar in front of the bottom bracket.

Hollow axles? Optimized Bearings? Oversized

My main pivot and center pivot feature hollow axles, both in CNC machined alloy. They are paired with versized bearings to enhance the torsional rigidity of the rear triangle while maintaining low weight. Sounds good?

All the clearence you need

You will be able to ride with me on pretty large tires, up to 2.4″ with a 30 mm rim internal width while being sure there is still enough space to clear mud on wet days.

Frame construction

The Lee Cougan family aimed to optimize comfort, efficiency and minimal weight. It employed advanced Torayca T1000 and T800 fibers. Can I say I'm proud of that? The carbon bearing is meticulously molded and its housing ensures high precision and adherence to stringent tolerance control standards. Basically, an incredible riding experience with effortless pedaling.

MY GEOMETRY: HERE I AM

My look is shaped by a long reach and open angles, paired with a short stem. The 430 mm of chain stays balance the open head tube angle providing you with traction and stability, uphill and downhill. The 168 mm Q-factor? It is provided in all sizes to suit every rider's nature. You can choose your size from 4 available sizes.

	S	M	L	XL
Seat Tube (FS)	400 mm	430 mm	470 mm	520 mm
Top tube (TT)	565 mm	590 mm	615 mm	640 mm
Head tube (HT)	80 mm	80 mm	105 mm	115 mm
Chain stay (CS)	430 mm	430 mm	430 mm	430 mm
Head tube angle (CA)	67.5°	67.5°	67.4°	67.4°
Seat tube angle (SA)	75.5°	75.5°	76.7°	76.8°
BB height (BB)	330 mm	330 mm	330 mm	330 mm
Wheel base (WB)	1115,6 mm	1140,3 mm	1182,8 mm	1212 mm
Reach (R)	413 mm	438 mm	470 mm	495 mm
Stack (S)	588 mm	588 mm	611 mm	620 mm
Standover	767,6 mm	773,8 mm	781,4 mm	850,0 mm
